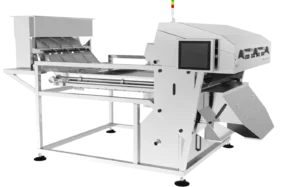

The MEYER KI Series (KI) sorter is a specialized device designed to master the most challenging separation task in the nut processing industry. It excels at the precise sorting of various nuts, including walnuts, almonds, pistachios, and macadamia nuts. The machine offers a focused range of configuration options, allowing its functionality to be precisely tailored for either shell and kernel separation or the removal of foreign materials. The sorter effectively removes shells, sticks, and stones, as well as foreign objects like glass and plastic.

Send inquiryDetails
Available models:
60KI4
120KI4
240KI4
Sorter details

KI Series details

The MEYER KI Series: Specialist for Shell & Kernel Separation

MEYER KI Series is a specialized single-layer optical sorter designed explicitly for the nut processing industry. Its primary and most powerful function is the separation of nut shells from kernels.

Core Technology & Application:

  • InGas Composite Infrared System: This is the defining feature of the KI Series. It utilizes advanced infrared technology to differentiate between materials based on their chemical composition, not just color. This allows it to effectively separate shells and kernels that are the same color, a task impossible for standard color sorters.
  • Targeted Impurity Removal: Beyond shell/kernel separation, it is highly effective at removing malignant impurities commonly found in nut streams, such as glass, rods (sticks), and plastics.
  • Gentle Product Handling: The machine uses a belt-type transfer structure, which ensures a smooth and stable drop. This is critical for minimizing breakage and shredding of valuable, fragile nut products like walnuts, almonds, and macadamia nuts.

Key Features & Specifications:
The KI Series incorporates many of MEYER’s core technologies but applies them to its specific separation task:

  • Maglev Ejector 3.0: Features the same ultra-fast, precise, and low-loss ejection system, operating at up to 1,200 ejections per second.
  • Ultra-HD Camera System: Uses industrial-grade CCD sensors to ensure clear material identification.
  • Intelligent Anti-shattering Technology: A targeted rejection algorithm and soft landing design are specifically crucial for this model to protect the nut kernels during the ejection process.
  • Model Variations: The KI Series is available in three main models to suit different capacity needs: 60KI, 120KI, and 240KI.
INPUT
Nuts Input before sorting Image
ACCEPT
Nuts Accept after sorting Image
REJECT
Nuts Reject after sorting Image
Technical information about models available
Sorter modelSorter codeSorter power (kW)Sorter voltage (V)Sorter air pressure (MPa)Sorter air consumption (m³/min)Sorter dimensions (L x W x H)Sorter weight (kg)
60KI46SXZ-60KI44.2180～240 50Hz0.6～0.81.53620*1345*2280680
120KI46SXZ-120KI46.6180～240 50Hz0.6～0.82.03620*1645*2280900
240KI46SXZ-240KI4180～240 50Hz0.6～0.8

AI Powered System

MEYER thoroughly researches AI technology to provide the best sorting solutions. Our devices ar equipped with deep learning AI systems, based on the analysis and integration of data features such as color and shape. By comparing materials with an extensive library of models, Meyer ensures precise classification even of the smallest defects at the level od 1-2 pixels.

Ultra high-speed HD Imaging System

The advanced inspection system scans material at a speed of 50,000 times per second, capturing its movement in slow motion—up to 1,000 times slower than in real time. The super slow-motion technology enables precise reconstruction of the material’s actual parameters, significantly enhancing sorting efficiency. The use of low-distortion lenses and an industrial-grade CCD sensor allows for the identification of objects as small as 0.0025 mm². This exceptional precision ensures unparalleled sorting accuracy, even for the smallest defects and impurities.

Maglev Ejectors®

Developed, manufactured, and patented by MEYER, Maglev® 3.0 ejectors deliver exceptionally fast response times and precise ejection. With their non-contact (levitating) design, Maglev® ejectors operate at a high frequency exceeding 1200 Hz. The millisecond-level opening and closing of the flaps significantly reduce material losses. The standardized design and fully automated production ensure longer service life and easier maintenance of the device.

Innovative Vision Systems

MEYER machines are equipped with high-resolution cameras, enabling the identification of material characteristics based on multiple aspects such as color, shape, density, and type of material. The minimum recognition range can reach as small as 0.0004 mm². MEYER sorters feature a multispectral identification system, including visible light, infrared light, UV light, and X-RAY technology. By utilizing differences in material properties, the cameras in MEYER machines allow for the precise removal of defects and foreign objects.

Full Spectrum Lighting System

The lighting, similar to natural daylight, reveals the true color of the material, allowing even the subtlest shades to be detected. The lighting in MEYER sorters, based on a full RGB range, is designed to precisely reveal the actual colors of materials. With the ability to adjust the background color, the system further enhances material feature detection depending on its specific properties. This solution enables more precise analysis and improves the efficiency of identifying defects and contaminants.

Remote control and service support

MEYER software enables remote control of devices and real-time monitoring of key machine parameters. Thanks to artificial intelligence-based technology, the system also offers remote machine start-up, backup creation, and intelligent status checks. The ability to remotely diagnose issues and manage machines from anywhere ensures convenience and efficiency in daily operation.

Sniper System

Utilizes advanced technology to detect contaminants in the material with high precision. Through three-dimensional reconstruction and a high-speed HD imaging system, it accurately locates the center of contamination. This data enables precise removal of defective units.

Simplified Interface

The control panel in MEYER devices is designed for maximum intuitiveness, making machine operation easy at any skill level. With a clear layout and user-friendly design, the system ensures convenience and operational efficiency. After proper training by the MEYER service team, operators can fully utilize the machine's capabilities while minimizing the time required for configuration and adjustments.

Pre-Sale
Consulting Solution Service
Configuration Suggestion
Layout Suggestion
Help Desk
Remote troubleshooting
Remote machine adjusting
Faulty deescalation
On-Site
Routing inspection
Commisioning
Troubleshooting
Recovery
Spare Parts
Risky spare parts supply
Warranty service
Key parts maintenance
Over warranty spare parts
Training
Local training
High level headquarter
Warranty
Standard warranty
Long term warranty
SLA
Over warranty

Pre-Sale Service

  • Consultation on selecting the optimal optical sorter tailored to your needs.
  • Support in integrating the machine with existing production lines.
  • Assistance in designing new lines with the sorter as a key component of the installation.
  • Material testing at our center – with the opportunity to attend and observe the process live.
  • Comprehensive technical consultations to ensure optimal implementation and maximum efficiency

After Sale Service

  • On-site service with quick response times and full commitment.
  • Warranty including free inspections and maintenance.
  • Consulting support for device usage and optimization.
  • Individual service documentation ensuring a complete service history.
