MEYER K Series is a single-layer multi-usage optical sorter built to remove “small target” impurities in complex product streams. It grades and cleans grains, pulses, nuts, fruits and vegetables by eliminating discoloration, damage, mold, insect-damaged pieces and foreign objects such as glass, plastic and sand.

Send inquiryDetails
Available models:

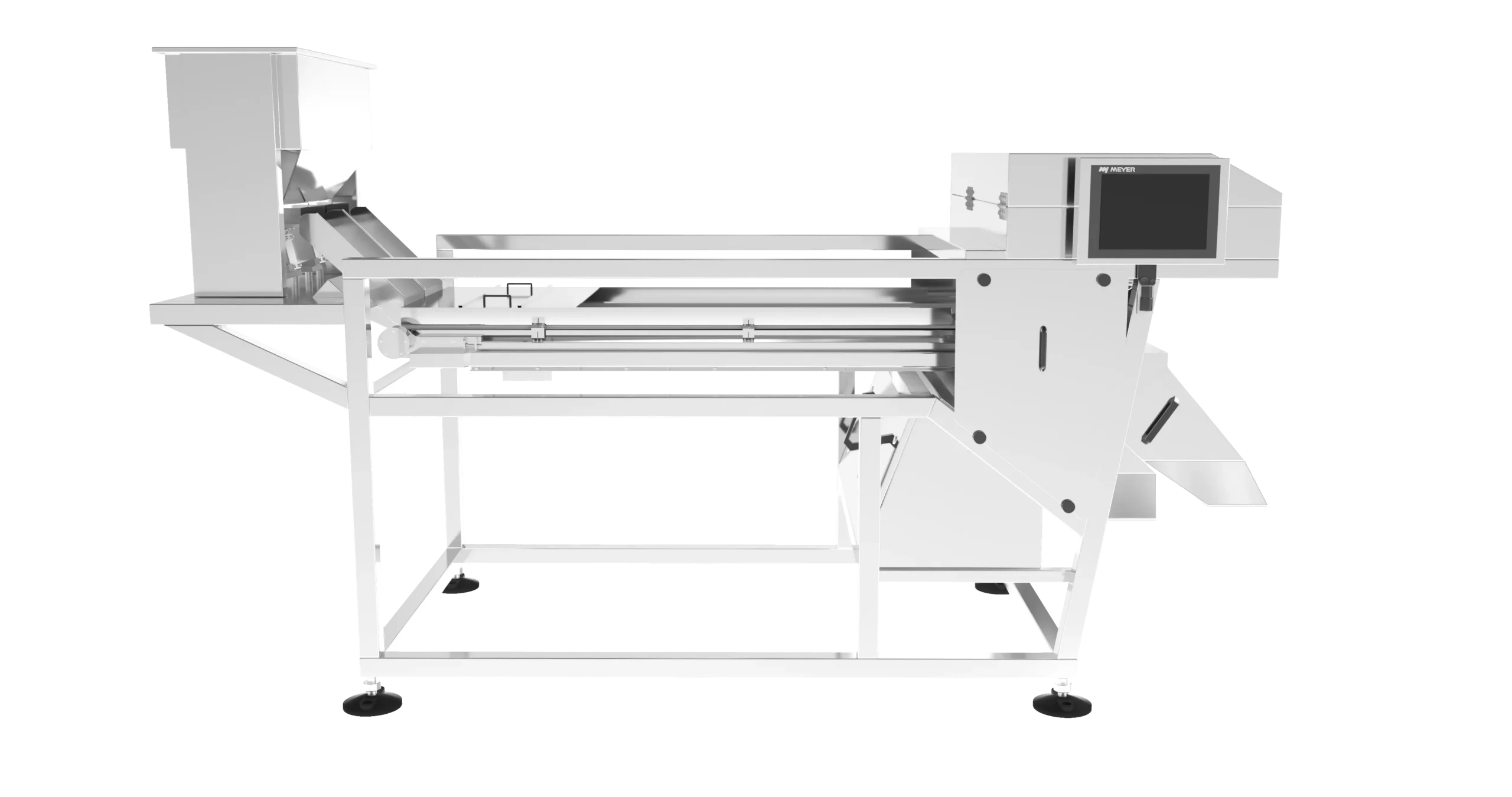

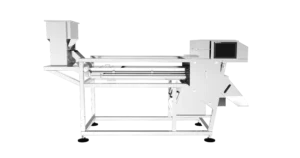

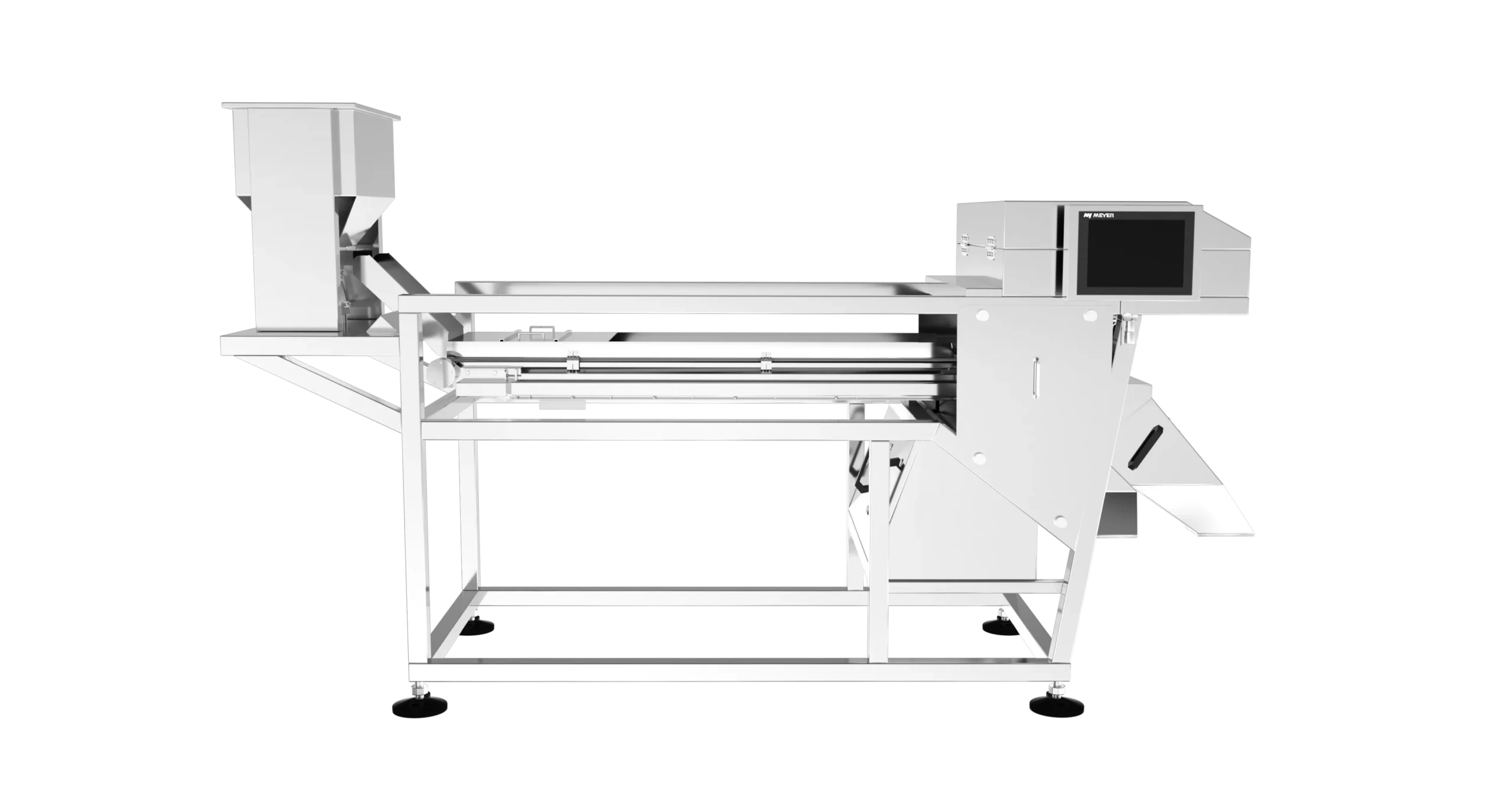

60K5

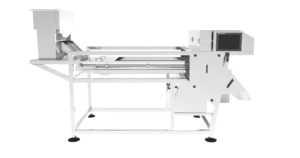

120K5

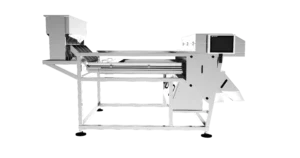

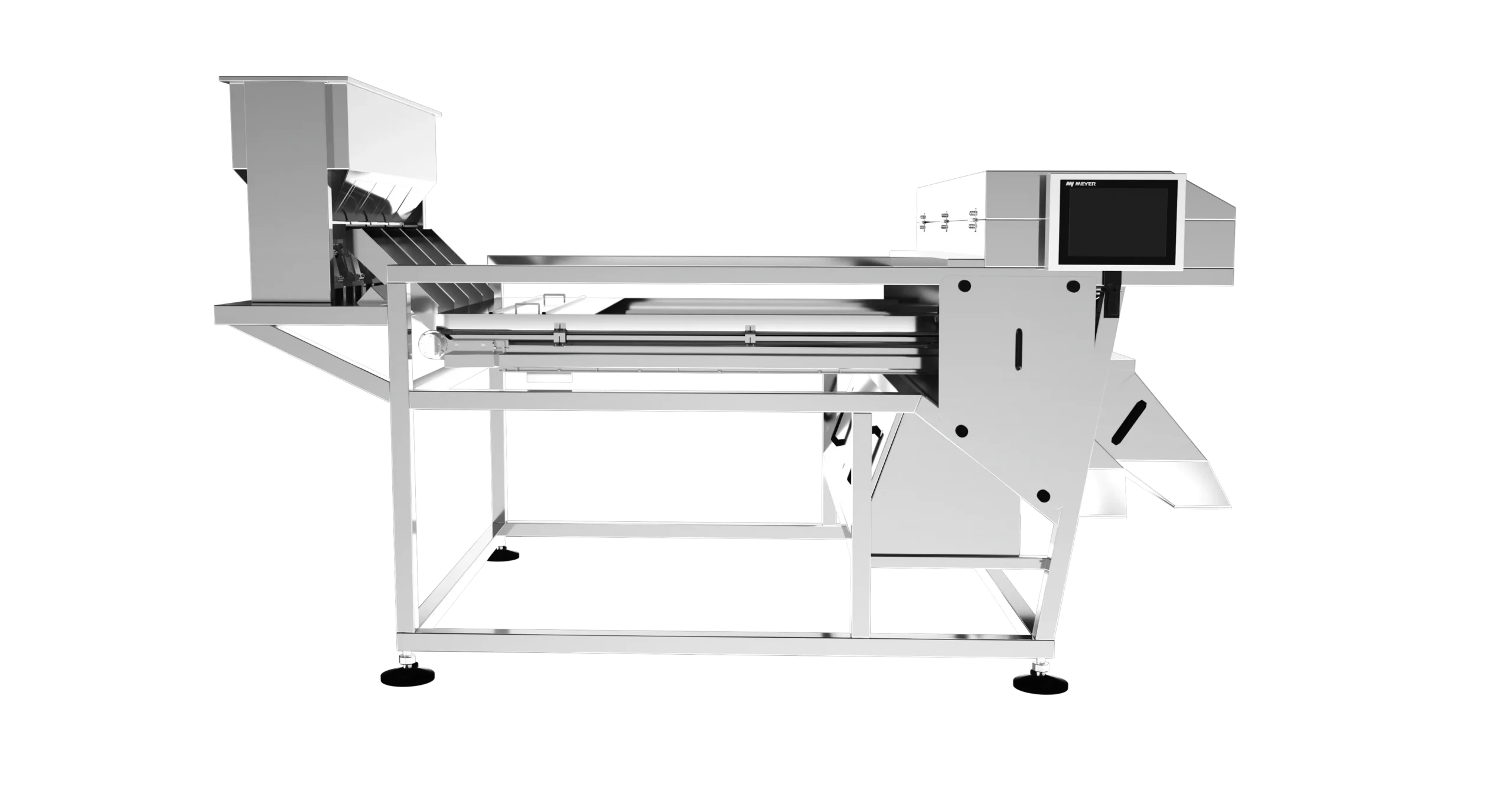

240K5
Sorter details

K Series details

MEYER K Series is a single-layer optical color sorter designed for demanding food and agricultural processing, especially where tiny defects and “small target” contaminants must be removed reliably. With scalable models (60K5, 120K5, 240K5), it can be configured to match different capacity requirements while keeping sorting stable in complex scenes.

The UHD2.0 AI Deep Learning system combines ultra-high-definition imaging and multi-core processing, enabling parallel color + shape analysis and boosting processing speed/accuracy. Ultra-HD cameras (low-distortion optics, industrial four-color CCD sensors) support extremely fine identification, while targeted positioning (3D reconstruction) helps locate contamination precisely for clean rejection. High-frequency feeding improves material stability, and Maglev Ejector 3.0 provides ultra-fast, accurate ejection with low loss—supported by anti-shattering (soft landing) to protect fragile products.

Key benefits:
• Precise removal of defects (discoloration, damage, mold, insect damage) and foreign materials (glass, plastic, sand)
• Shape grading (e.g., long/round, long/short, large/small)
• Modular, standardized build with intelligent manufacturing for long-term reliability
• Highly hermetic sorting chamber (>99% airtightness) for protection against dust, water and oil
• Remote service via PC/mobile for commissioning, health checks and maintenance guidance

INPUT
Metal Input before sorting Image
ACCEPT
Metal Accept Image
Metal Accept Image
Metal Accept Image
Metal Accept Image
Technical information about models available
Sorter modelSorter codeSorter power (kW)Sorter voltage (V)Sorter air pressure (MPa)Sorter air consumption (m³/min)Sorter dimensions (L x W x H)Sorter weight (kg)
60K56SXZ-60K51.6180～240 50Hz0.6～0.81.53410*1200*1800660
120K56SXZ-120K53.6180～240 50Hz0.6～0.82.03405*1421*1789700
240K56SXZ-240K54.7180～240 50Hz0.6～0.83.03405*2043*1789990

AI Powered System

MEYER thoroughly researches AI technology to provide the best sorting solutions. Our devices ar equipped with deep learning AI systems, based on the analysis and integration of data features such as color and shape. By comparing materials with an extensive library of models, Meyer ensures precise classification even of the smallest defects at the level od 1-2 pixels.

Ultra high-speed HD Imaging System

The advanced inspection system scans material at a speed of 50,000 times per second, capturing its movement in slow motion—up to 1,000 times slower than in real time. The super slow-motion technology enables precise reconstruction of the material’s actual parameters, significantly enhancing sorting efficiency. The use of low-distortion lenses and an industrial-grade CCD sensor allows for the identification of objects as small as 0.0025 mm². This exceptional precision ensures unparalleled sorting accuracy, even for the smallest defects and impurities.

Maglev Ejectors®

Developed, manufactured, and patented by MEYER, Maglev® 3.0 ejectors deliver exceptionally fast response times and precise ejection. With their non-contact (levitating) design, Maglev® ejectors operate at a high frequency exceeding 1200 Hz. The millisecond-level opening and closing of the flaps significantly reduce material losses. The standardized design and fully automated production ensure longer service life and easier maintenance of the device.

Innovative Vision Systems

MEYER machines are equipped with high-resolution cameras, enabling the identification of material characteristics based on multiple aspects such as color, shape, density, and type of material. The minimum recognition range can reach as small as 0.0004 mm². MEYER sorters feature a multispectral identification system, including visible light, infrared light, UV light, and X-RAY technology. By utilizing differences in material properties, the cameras in MEYER machines allow for the precise removal of defects and foreign objects.

Full Spectrum Lighting System

The lighting, similar to natural daylight, reveals the true color of the material, allowing even the subtlest shades to be detected. The lighting in MEYER sorters, based on a full RGB range, is designed to precisely reveal the actual colors of materials. With the ability to adjust the background color, the system further enhances material feature detection depending on its specific properties. This solution enables more precise analysis and improves the efficiency of identifying defects and contaminants.

Remote control and service support

MEYER software enables remote control of devices and real-time monitoring of key machine parameters. Thanks to artificial intelligence-based technology, the system also offers remote machine start-up, backup creation, and intelligent status checks. The ability to remotely diagnose issues and manage machines from anywhere ensures convenience and efficiency in daily operation.

Sniper System

Utilizes advanced technology to detect contaminants in the material with high precision. Through three-dimensional reconstruction and a high-speed HD imaging system, it accurately locates the center of contamination. This data enables precise removal of defective units.

Simplified Interface

The control panel in MEYER devices is designed for maximum intuitiveness, making machine operation easy at any skill level. With a clear layout and user-friendly design, the system ensures convenience and operational efficiency. After proper training by the MEYER service team, operators can fully utilize the machine's capabilities while minimizing the time required for configuration and adjustments.

Pre-Sale
Consulting Solution Service
Configuration Suggestion
Layout Suggestion
Help Desk
Remote troubleshooting
Remote machine adjusting
Faulty deescalation
On-Site
Routing inspection
Commisioning
Troubleshooting
Recovery
Spare Parts
Risky spare parts supply
Warranty service
Key parts maintenance
Over warranty spare parts
Training
Local training
High level headquarter
Warranty
Standard warranty
Long term warranty
SLA
Over warranty

Pre-Sale Service

  • Consultation on selecting the optimal optical sorter tailored to your needs.
  • Support in integrating the machine with existing production lines.
  • Assistance in designing new lines with the sorter as a key component of the installation.
  • Material testing at our center – with the opportunity to attend and observe the process live.
  • Comprehensive technical consultations to ensure optimal implementation and maximum efficiency

After Sale Service

  • On-site service with quick response times and full commitment.
  • Warranty including free inspections and maintenance.
  • Consulting support for device usage and optimization.
  • Individual service documentation ensuring a complete service history.
