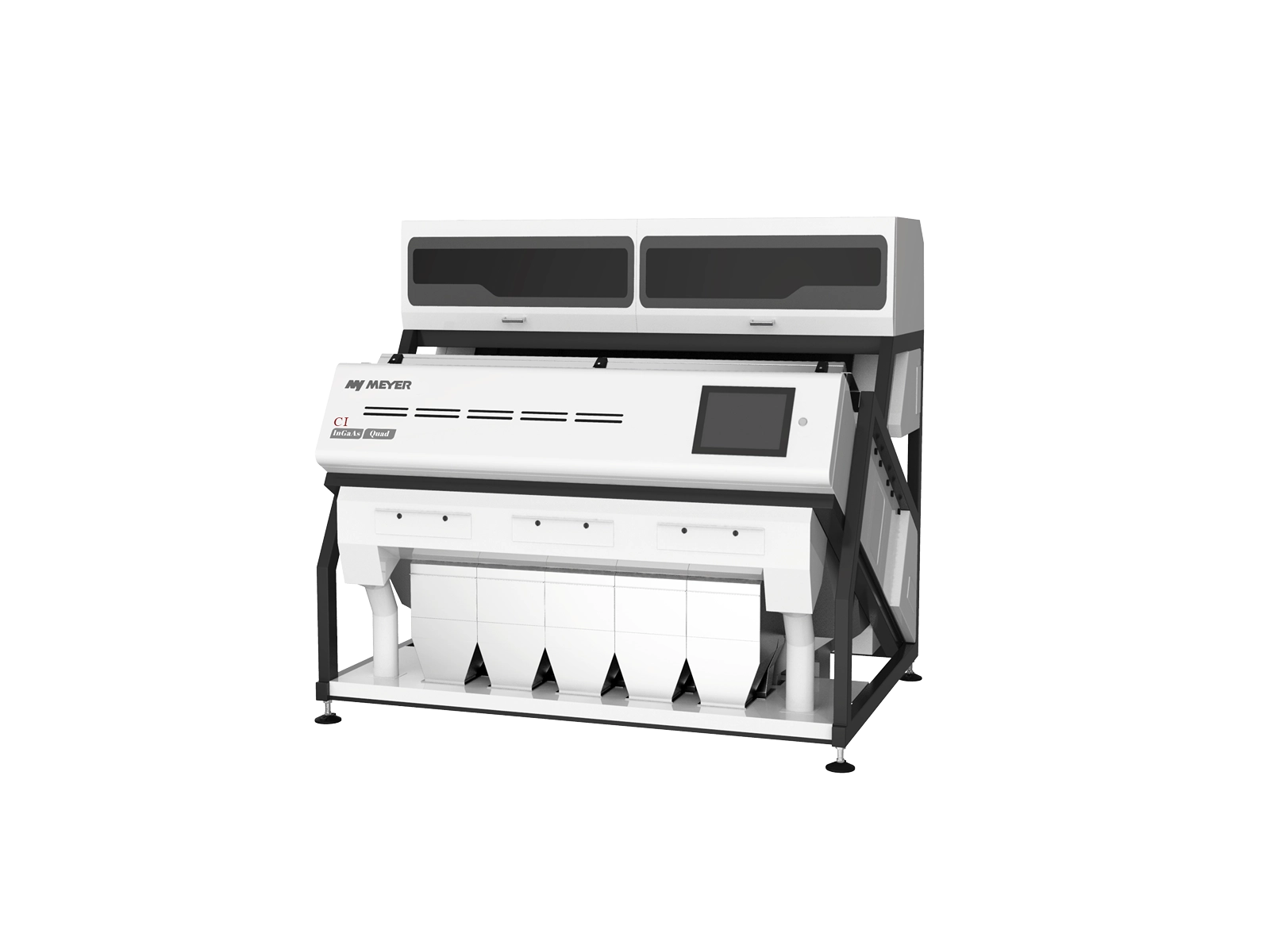

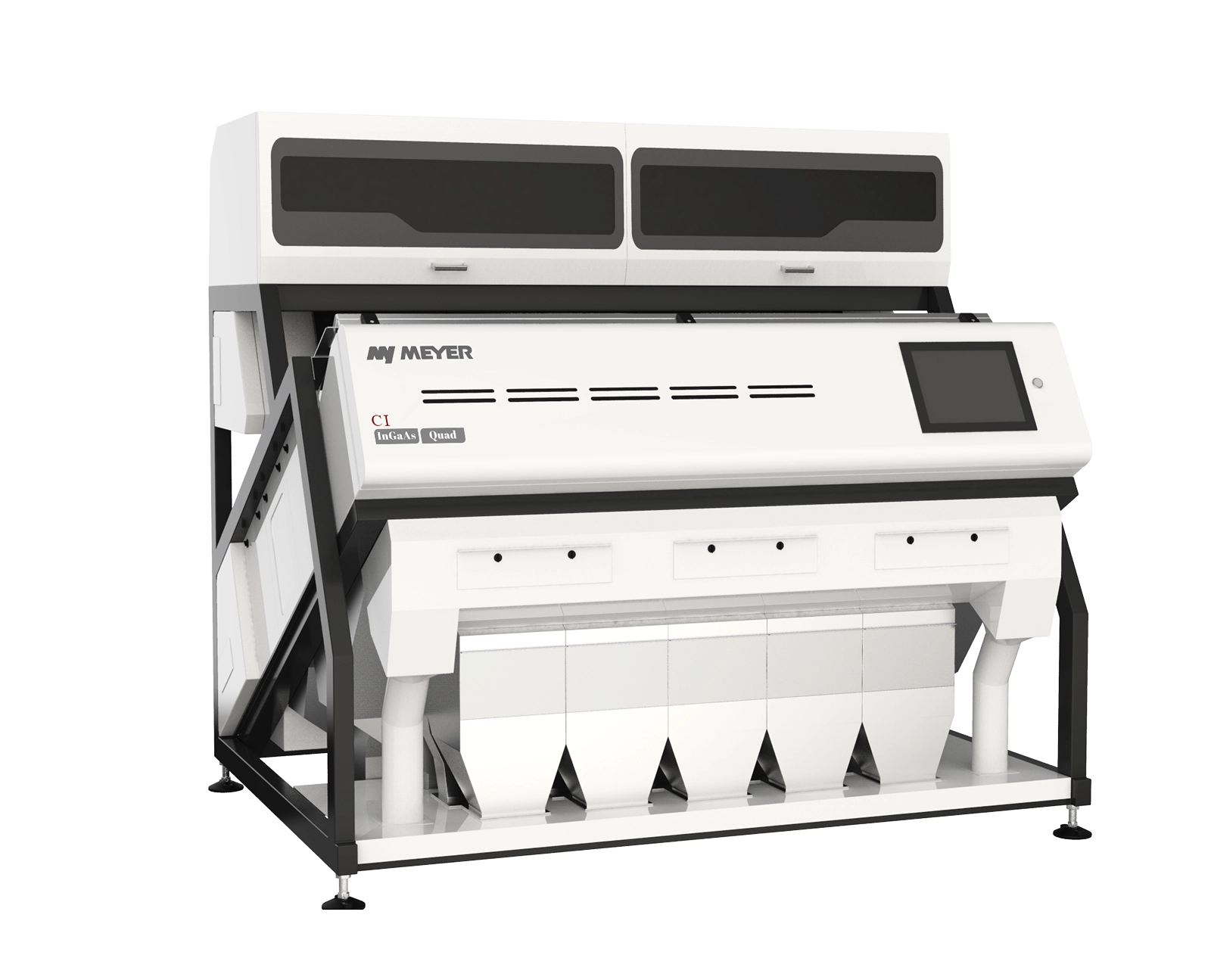

Sorter details

Meyer Technology

Send inquiryTest center

Specifications

Model:

CI5 300CI / 6SXZ-300CI

Chutes:

5

Throughput:

0.7-1.2 t / h

Sorting accuracy:

99.99 %

Power:

6.7 kW

Power Voltage:

AC 180~240 V / 50Hz

Air source pressure:

0.6~0.8 MPa

Weight:

1700 kg

Dimensions:

2220 x 2030 x 1700 mm
Optical sorting use cases

Material sorting samples and applications

INPUT
Nuts Input before sorting Image
ACCEPT
Nuts Accept after sorting Image
REJECT
Nuts Reject after sorting Image
Product features

Our solutions are based on modern technology

AI
Cameras
Maglev Ejectors®
Vision
Lighting
Remote control
Sniper System
User Interface

AI Powered System

Intelligent interconnection between people and MEYER sorting machines ensure the sorting production process can be easily controlled for adjusting the sorting parameters, getting the raw material and accepts data online anytime, anywhere.

Ultra high-speed HD Imaging System

The inspection system scans the product 50,000 times per second. The material falling by gravity is visible at a 1000 times slower pace. Super slow motion is used to recreate the true shape of the material.

Maglev Ejectors®

Based on the structure of non-contact (levitating) MEYER Maglev Ejectors® are characterized by a high operating frequency >1200Hz. They keep long-service life because of their unique structure. Maglev ejectors are invented and patented by MEYER.

Innovative Vision Systems

Innovative AI technology for advanced optical sorting consists of cameras working in the electromagnetic spectrum Full RGB visible light, Infrared Standard, Infrared HD InGaAs and UV light.

Full Spectral Lighting System

Close to daylight lighting, reveal the actual color of the material,
even subtle nuance of color can be exposed.

Remote control and service support

With remote control service it is easy to set and control the relevant machines parameters. Remote commissioning and intelligent backup is also available in AI devices.

Sniper System

Matching with ultra HD imaging system, it can locate the center point of impurity by 3D material reconstruction and accurately remove the impurity.

Simplified Interface

The extremely simplified control panel allows easy operation of the machine. Simple operation even for a child.

Our services

We will help you on every step

Pre-Sale
Consulting Solution Service
Configuration Suggestion
Layout Suggestion
Help Desk
Remote troubleshooting
Remote machine adjusting
Faulty escalation
On-Site
Routing inspection
Commisioning
Troubleshooting
Recovery
Spare Parts
Risky spare parts supply
Warranty service
Key parts maintenance
Over warranty spare parts
Training
Local training
High level headquarter
Warranty
Standard warranty
Long term warranty
SLA
Over warranty

Pre-Sale Service

We are committed to providing you with comprehensive information about our color sorter, ensuring it meets your unique needs based on your specific circumstances.

After Sale Service

  • Experience our 24-hour on-site service with fast response and thoughtful consideration.
  • Enjoy a two-year warranty with complimentary maintenance.
  • Benefit from our 24/7 free consultation service.
  • Gain peace of mind with our user file creation and dedicated tracking services.
