Chute Color Sorters

CG Plastic Recycling Series

MEYER CG Recycling Series is a chute-type optical sorter designed for precise color sorting of plastics, such as PET flakes, bottle caps, and other small plastic fractions. The machine is engineered for high throughput, stable operation, and excellent separation efficiency. Thanks to advanced optical systems and intelligent design solutions, MEYER CG.P Recycling Series sorter delivers consistent results and reliable continuous operation, even under heavy production loads.

Send inquiryDetails
Available models:

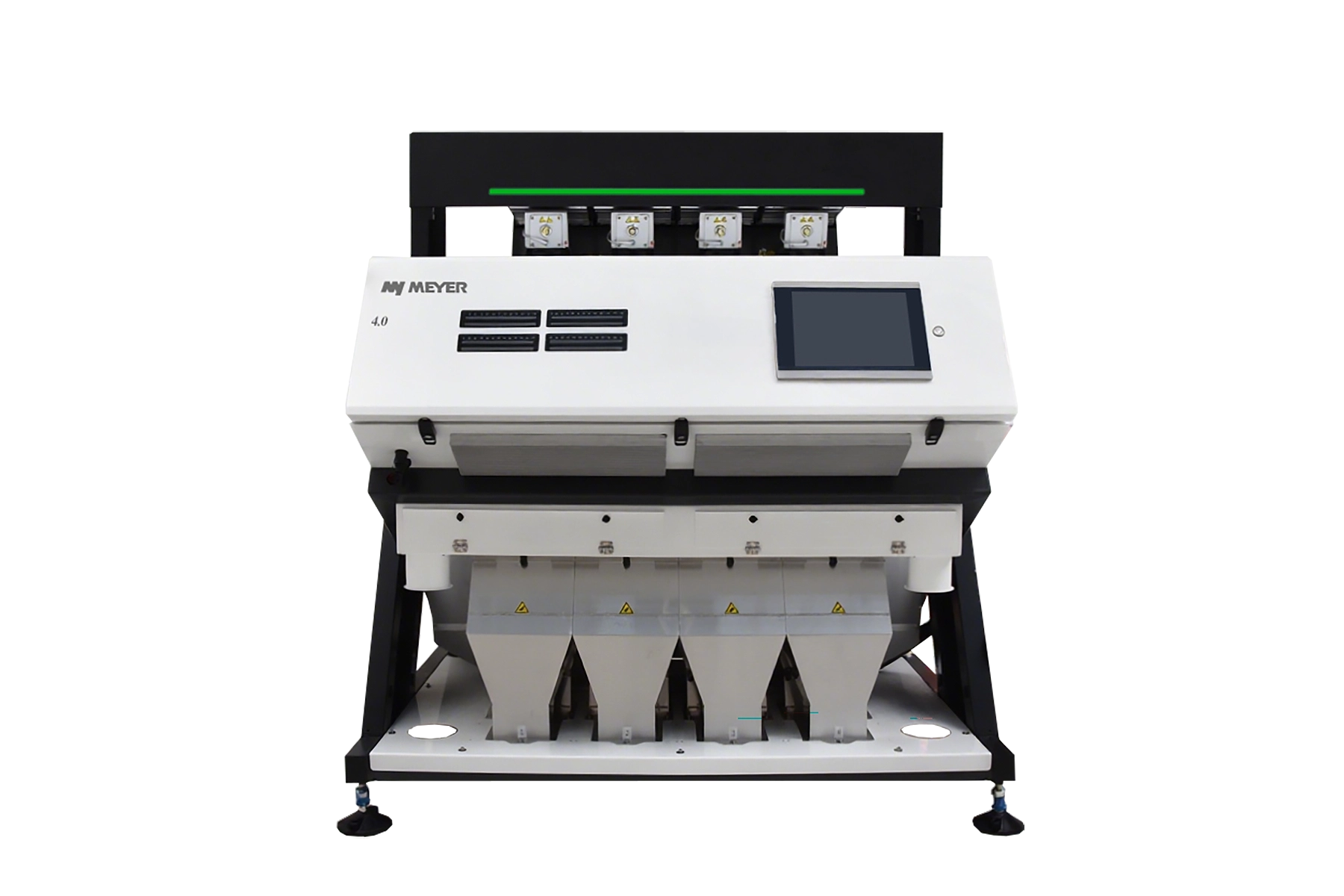

CG 4

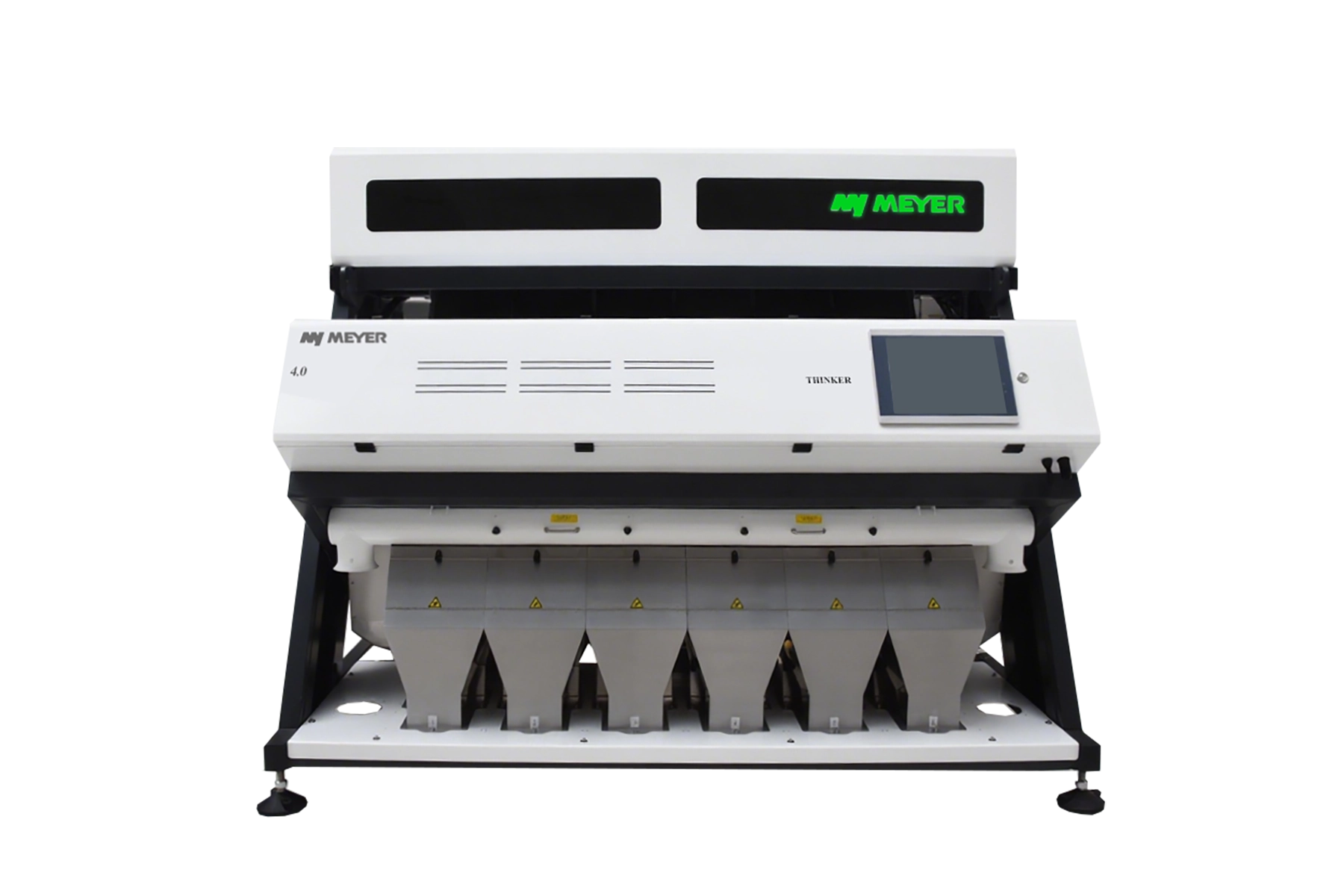

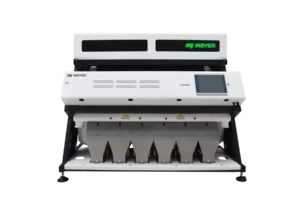

CG 6
CG 8

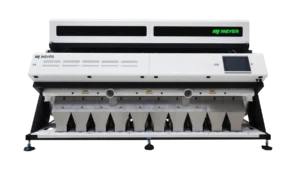

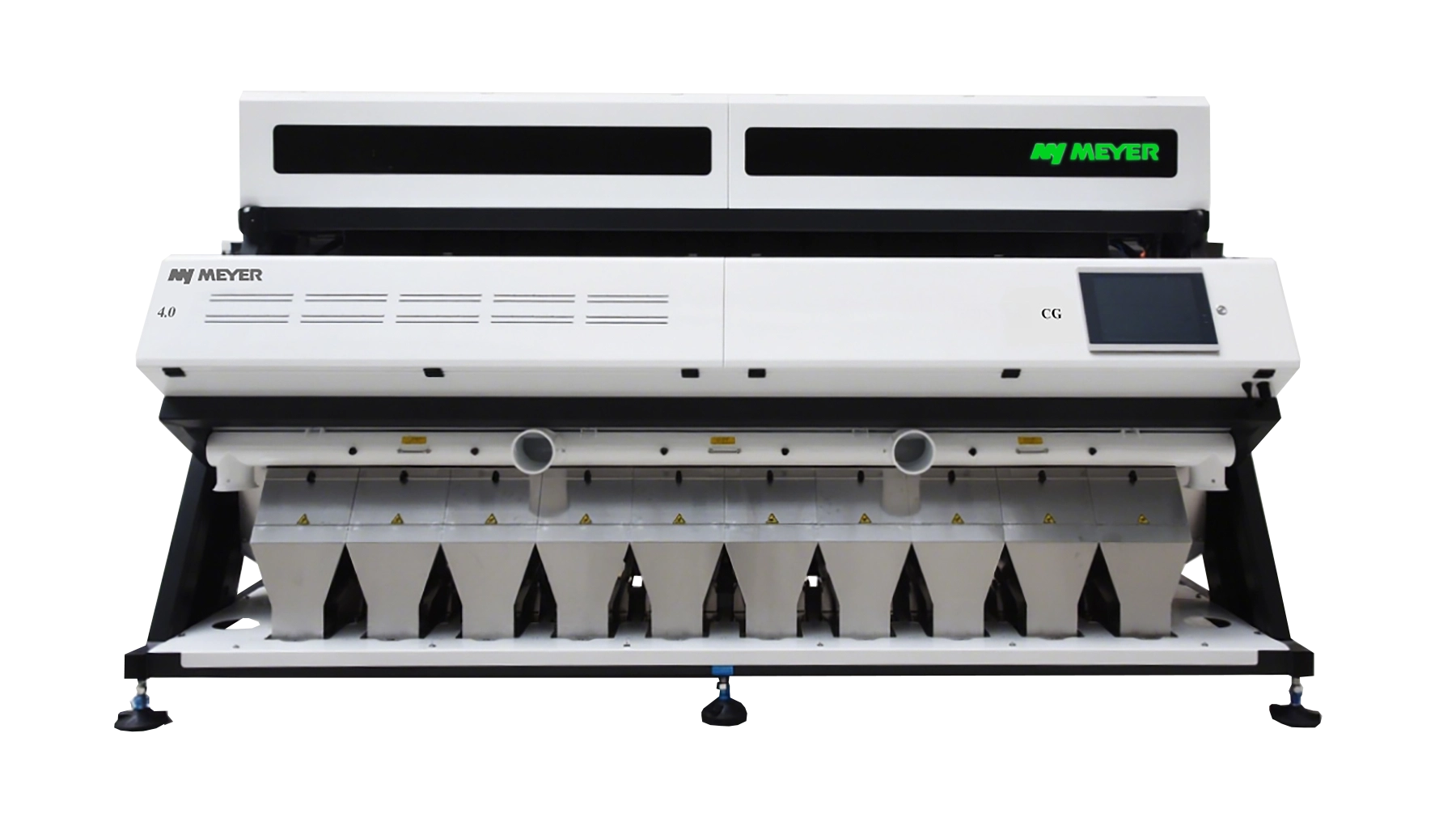

CG 10

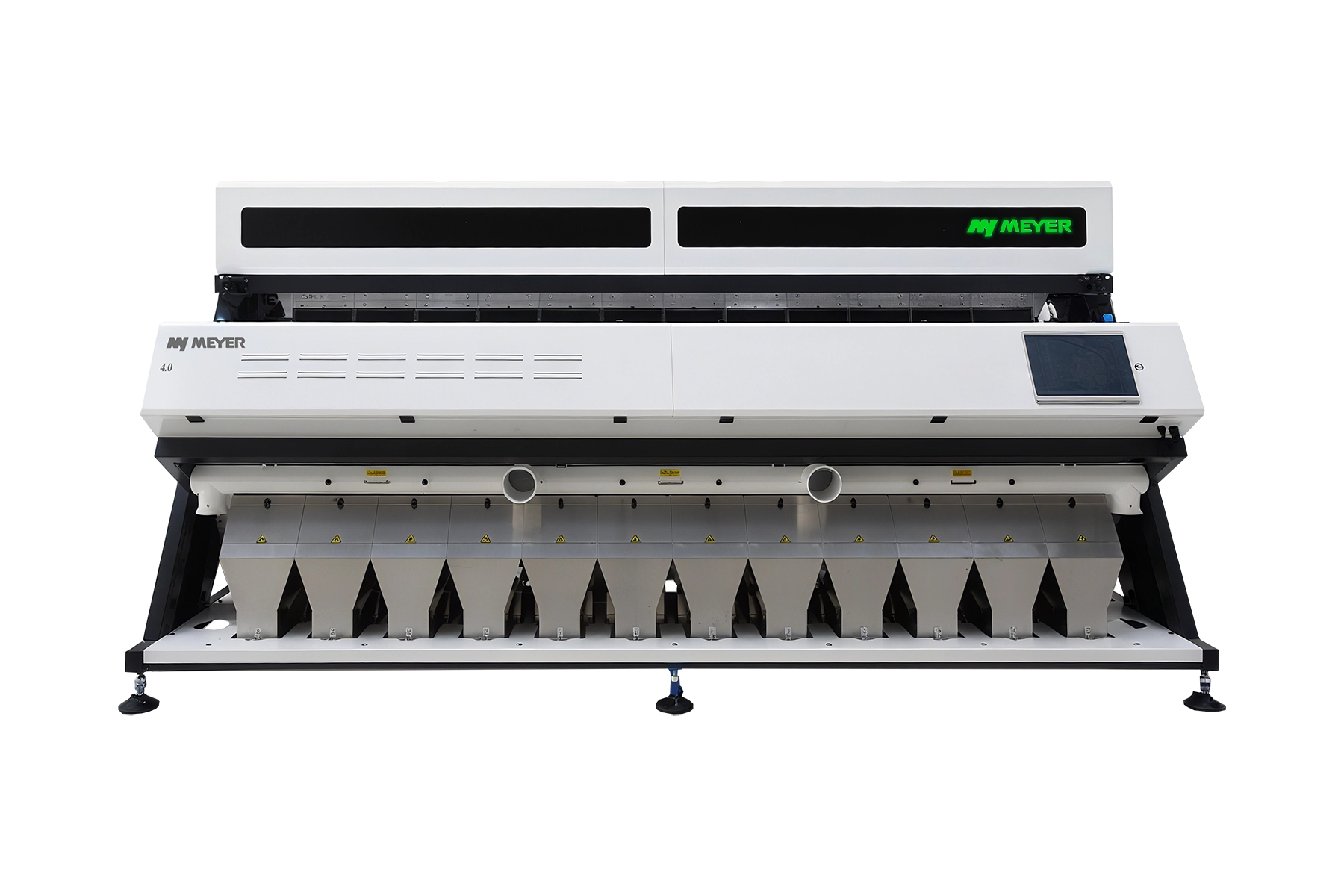

CG 12

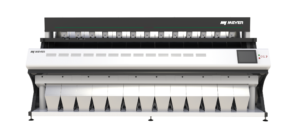

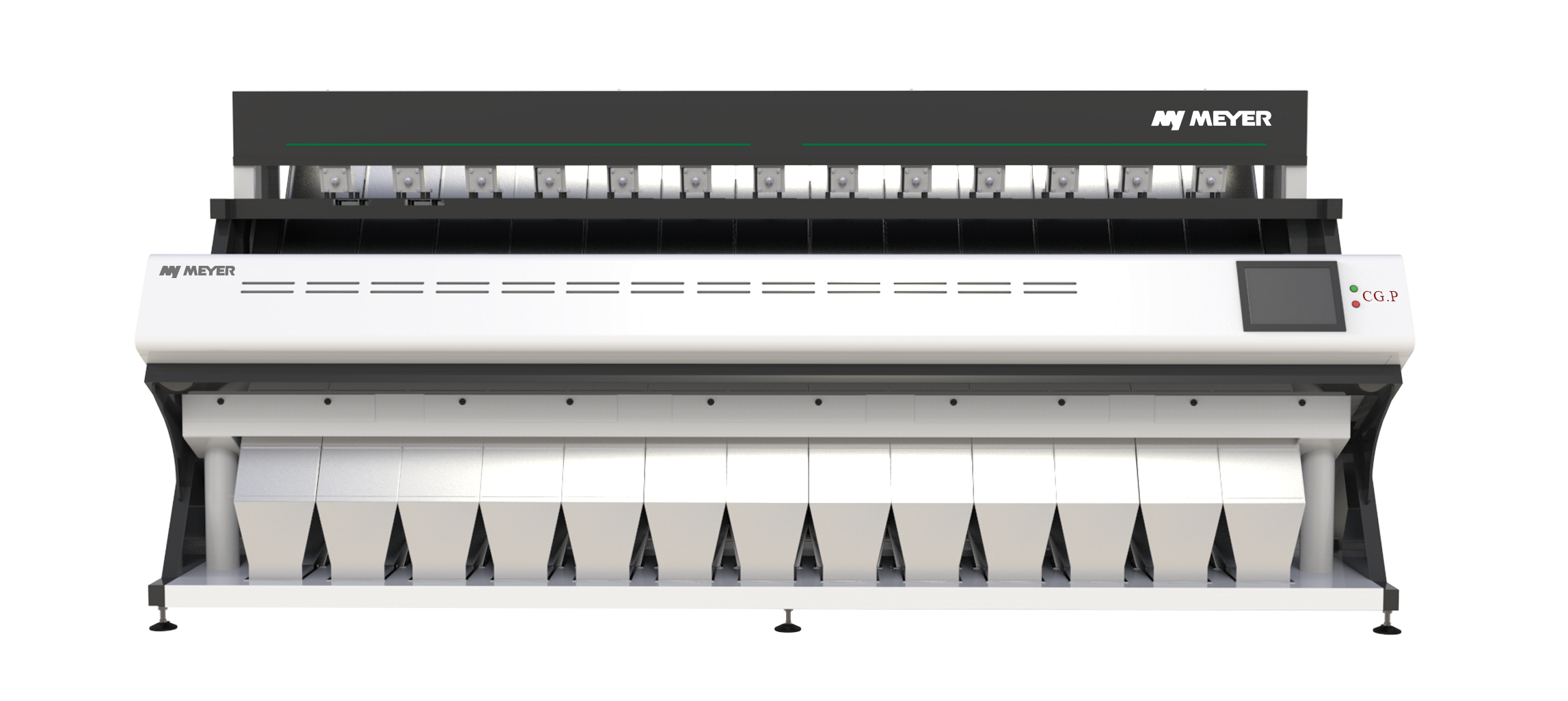

CG 13
Sorter details

CG Plastic Recycling Series details

MEYER CG Recycling Series is a chute-type optical sorter designed for precise color sorting of plastics, such as PET flakes, bottle caps, and other small plastic fractions. The machine is engineered for high throughput, stable operation, and excellent separation efficiency. Thanks to advanced optical systems and intelligent design solutions, MEYER CG.P Recycling Series sorter delivers consistent results and reliable continuous operation, even under heavy production loads.

  • Modular design and intelligent manufacturing: The sorter’s structure is highly modular and standardized, ensuring exceptional system reliability. Up to 70% of components are produced through automated and intelligent processes, providing consistent quality, long-term stable operation, and reduced maintenance needs, enabling smooth continuous use.
  • Digital electrical control system: Advanced digital topology reduces unnecessary control modules and minimizes wiring complexity. Hidden cable routing protects key components from sudden failures, ensuring safe and reliable operation.
  • High-frequency material feeding system: The high-frequency vibrator guarantees even and stable material flow across the entire chute. Its compact design and high efficiency maintain consistent sorting performance while improving detection accuracy and reducing material overlap.
  • Intelligent alarm and remote service: MEYER CG.P features a visual LED alarm system for quick detection of issues such as signal errors, air pressure fluctuations, or lighting problems. Remote operation via PC or mobile device allows for fast diagnostics, service support, and reduced downtime.
INPUT
PVC Input before sorting Image
ACCEPT
PVC Accept after sorting Image
REJECT
PVC Reject after sorting Image
Technical information about models available
Sorter modelSorter codeSorter power (kW)Sorter voltage (V)Sorter air pressure (MPa)Sorter air consumption (m³/min)Sorter dimensions (L x W x H)Sorter weight (kg)
CG 46SXZ-240CG2-GY2.0180～240 50Hz0.6～0.84.01891*1564*20201120
CG 66SXZ-360CG2-GY2.7180～240 50Hz0.6～0.85.52533*1564*20201400
CG 86SXZ-480CG2-GY3.4180～240 50Hz0.6～0.86.52991*1564*20201750
CG 106SXZ-600CG2-GY4.0180～240 50Hz0.6～0.88.03583*1564*20202090
CG 126SXZ-720CG2-GY6.0180～240 50Hz0.6～0.810.04128*1565*20332090
CG 136SXZ-780CG2-GY5.0180～240 50Hz0.6～0.810.04445*1620*20202800

AI Powered System

MEYER thoroughly researches AI technology to provide the best sorting solutions. Our devices ar equipped with deep learning AI systems, based on the analysis and integration of data features such as color and shape. By comparing materials with an extensive library of models, Meyer ensures precise classification even of the smallest defects at the level od 1-2 pixels.

Ultra high-speed HD Imaging System

The advanced inspection system scans material at a speed of 50,000 times per second, capturing its movement in slow motion—up to 1,000 times slower than in real time. The super slow-motion technology enables precise reconstruction of the material’s actual parameters, significantly enhancing sorting efficiency. The use of low-distortion lenses and an industrial-grade CCD sensor allows for the identification of objects as small as 0.0025 mm². This exceptional precision ensures unparalleled sorting accuracy, even for the smallest defects and impurities.

Maglev Ejectors®

Developed, manufactured, and patented by MEYER, Maglev® 3.0 ejectors deliver exceptionally fast response times and precise ejection. With their non-contact (levitating) design, Maglev® ejectors operate at a high frequency exceeding 1200 Hz. The millisecond-level opening and closing of the flaps significantly reduce material losses. The standardized design and fully automated production ensure longer service life and easier maintenance of the device.

Innovative Vision Systems

MEYER machines are equipped with high-resolution cameras, enabling the identification of material characteristics based on multiple aspects such as color, shape, density, and type of material. The minimum recognition range can reach as small as 0.0004 mm². MEYER sorters feature a multispectral identification system, including visible light, infrared light, UV light, and X-RAY technology. By utilizing differences in material properties, the cameras in MEYER machines allow for the precise removal of defects and foreign objects.

Full Spectrum Lighting System

The lighting, similar to natural daylight, reveals the true color of the material, allowing even the subtlest shades to be detected. The lighting in MEYER sorters, based on a full RGB range, is designed to precisely reveal the actual colors of materials. With the ability to adjust the background color, the system further enhances material feature detection depending on its specific properties. This solution enables more precise analysis and improves the efficiency of identifying defects and contaminants.

Remote control and service support

MEYER software enables remote control of devices and real-time monitoring of key machine parameters. Thanks to artificial intelligence-based technology, the system also offers remote machine start-up, backup creation, and intelligent status checks. The ability to remotely diagnose issues and manage machines from anywhere ensures convenience and efficiency in daily operation.

Sniper System

Utilizes advanced technology to detect contaminants in the material with high precision. Through three-dimensional reconstruction and a high-speed HD imaging system, it accurately locates the center of contamination. This data enables precise removal of defective units.

Simplified Interface

The control panel in MEYER devices is designed for maximum intuitiveness, making machine operation easy at any skill level. With a clear layout and user-friendly design, the system ensures convenience and operational efficiency. After proper training by the MEYER service team, operators can fully utilize the machine's capabilities while minimizing the time required for configuration and adjustments.

Pre-Sale
Consulting Solution Service
Configuration Suggestion
Layout Suggestion
Help Desk
Remote troubleshooting
Remote machine adjusting
Faulty deescalation
On-Site
Routing inspection
Commisioning
Troubleshooting
Recovery
Spare Parts
Risky spare parts supply
Warranty service
Key parts maintenance
Over warranty spare parts
Training
Local training
High level headquarter
Warranty
Standard warranty
Long term warranty
SLA
Over warranty

Pre-Sale Service

  • Consultation on selecting the optimal optical sorter tailored to your needs.
  • Support in integrating the machine with existing production lines.
  • Assistance in designing new lines with the sorter as a key component of the installation.
  • Material testing at our center – with the opportunity to attend and observe the process live.
  • Comprehensive technical consultations to ensure optimal implementation and maximum efficiency

After Sale Service

  • On-site service with quick response times and full commitment.
  • Warranty including free inspections and maintenance.
  • Consulting support for device usage and optimization.
  • Individual service documentation ensuring a complete service history.
